4. Deep Learning Fundamentals

Neurons, activation functions, forward propagation, loss functions, gradient descent, backpropagation, overfitting

Contents

1. Why Deep Learning? 2. The Neuron 3. Network Architecture 4. Activation Functions 5. Forward Propagation 6. SoftMax & Output 7. Loss Functions 8. Gradient Descent 9. Backpropagation 10. Training Pipeline 11. Overfitting & Underfitting 12. Hierarchical Feature Learning Interactive: Backpropagation Walkthrough Flashcards

1. Why Deep Learning?

Classical computer vision methods rely on hand-crafted features such as SIFT, HOG, and Haar-like features. While computationally cheap, they suffer from critical limitations that deep learning overcomes.

Limitation of Classical Methods	Deep Learning Solution
Inflexible hand-crafted features	Learns features directly from data
Poor multi-class performance	Softmax naturally supports many classes
Sensitive to viewpoint, scale, illumination, occlusion	Learned invariances from large datasets
Cannot handle intra-class variation	Hierarchical representations capture variation

Key insight

The fundamental shift in deep learning: instead of engineering features by hand, we engineer the architecture and let the network discover which features matter for the task.

2. The Neuron: Basic Building Block

Biological Inspiration

Neural networks are loosely inspired by the brain. The key insight is that connections (not the neurons themselves) encode knowledge. In artificial neural networks, connection strengths are called weights.

Biological neuron showing dendrites, cell body, axon

Biological neuron: dendrites receive signals, the cell body integrates them, the axon transmits the output.

Artificial Neuron

An artificial neuron takes weighted inputs, adds a bias, then applies an activation function:

Neuron Computation

$$z = \sum_{i=1}^{n} w_i a_i + b$$ $$\text{output} = f(z)$$ where $a_i$ are input activations, $w_i$ are weights, $b$ is the bias, and $f$ is the activation function.

The bias $b$ shifts the activation threshold. Without bias, neurons can only model functions passing through the origin. A bias of $-10$ means the neuron only activates when $\sum w_i a_i > 10$.

Input Layer Example: MNIST

For a 28×28 grayscale image (MNIST handwritten digits), each pixel becomes one input neuron:

MNIST Input Layer

$$784 \text{ neurons} = 28 \times 28 \text{ pixels}$$ Each neuron's activation = pixel intensity (0 = black, 1 = white).

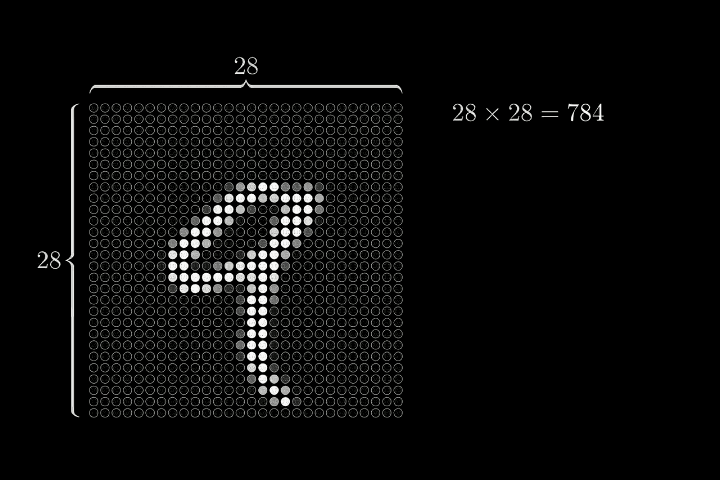

A 28x28 digit image: each pixel maps to one input neuron. Black pixel = 0.0, white pixel = 1.0.

3. Network Architecture

Layers of a Neural Network

The MNIST digit recognition network has four layers:

Input layer (784 neurons): One neuron per pixel.
Hidden layer 1 (16 neurons): Learns low-level patterns (edges, strokes).
Hidden layer 2 (16 neurons): Learns higher-level combinations.
Output layer (10 neurons): One neuron per class (digits 0–9). Highest activation = prediction.

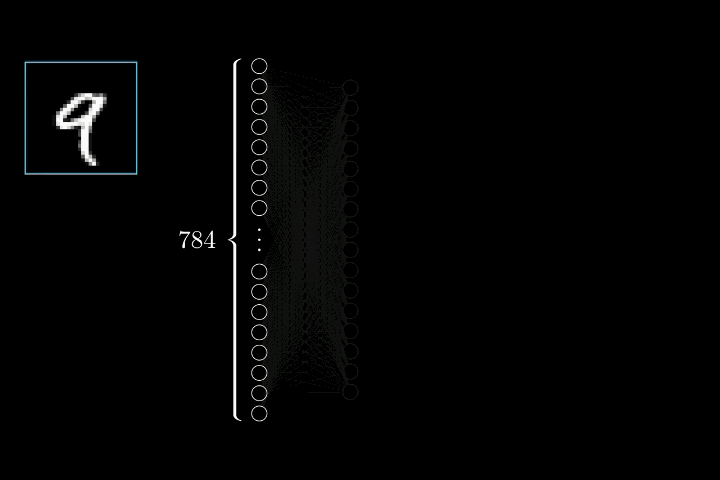

Full 784-16-16-10 architecture. Activations propagate forward; the most active output neuron is the prediction.

Role of Weights

Positive weight: amplifies the signal (excitatory connection).
Negative weight: suppresses the signal (inhibitory connection).
Finding the right weights is the entire goal of training.

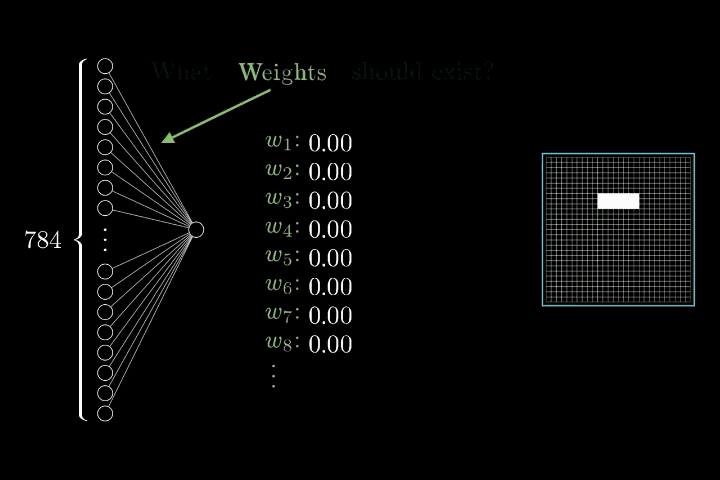

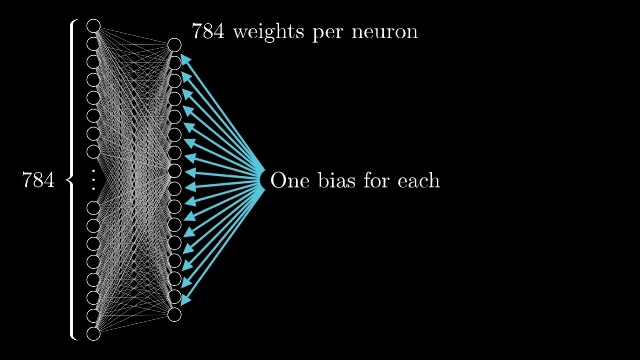

A single hidden neuron with 784 incoming weighted connections. Each connection has a learned weight.

Parameter Count: 784-16-16-10 Network

$$\text{Total} = \underbrace{(784 \times 16 + 16)}_{\text{layer 1}} + \underbrace{(16 \times 16 + 16)}_{\text{layer 2}} + \underbrace{(16 \times 10 + 10)}_{\text{layer 3}} = 13{,}002 \text{ parameters}$$

Parameter count per layer: weights plus one bias per neuron.

4. Activation Functions

Why Non-Linearity is Essential

This is a critical exam concept. If every neuron uses a linear activation $f(x) = x$, then no matter how many layers you stack, the entire network collapses to a single linear transformation:

Key insight

The sum of linear functions is always linear. Without non-linear activations, a deep network is mathematically equivalent to a single-layer linear classifier. Non-linearity is what gives deep networks their expressive power.

Sigmoid

Sigmoid Function

$$\sigma(x) = \frac{1}{1 + e^{-x}}, \quad \text{range: } (0, 1)$$ Derivative: $\sigma'(x) = \sigma(x) \cdot (1 - \sigma(x))$

The S-shaped curve maps any input to $(0, 1)$. Useful for output layers requiring probability-like values.

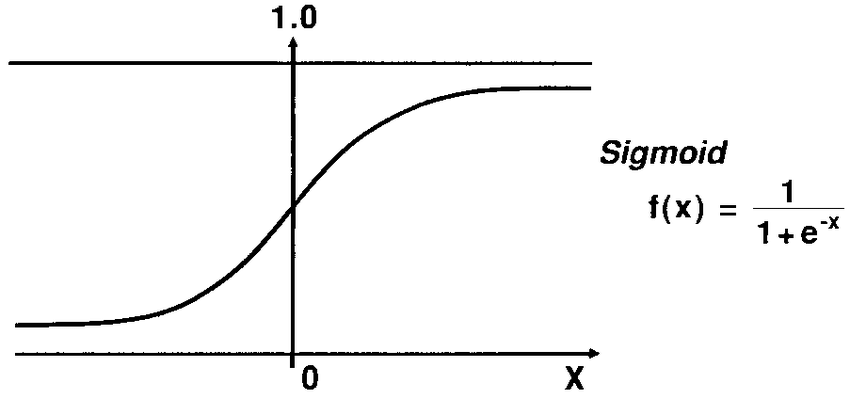

Sigmoid: S-shaped curve from 0 to 1. At x=0, output=0.5.

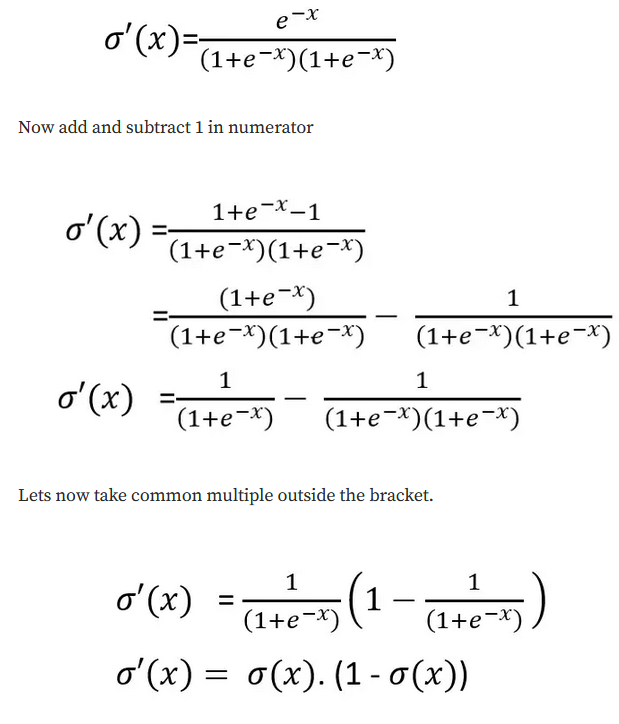

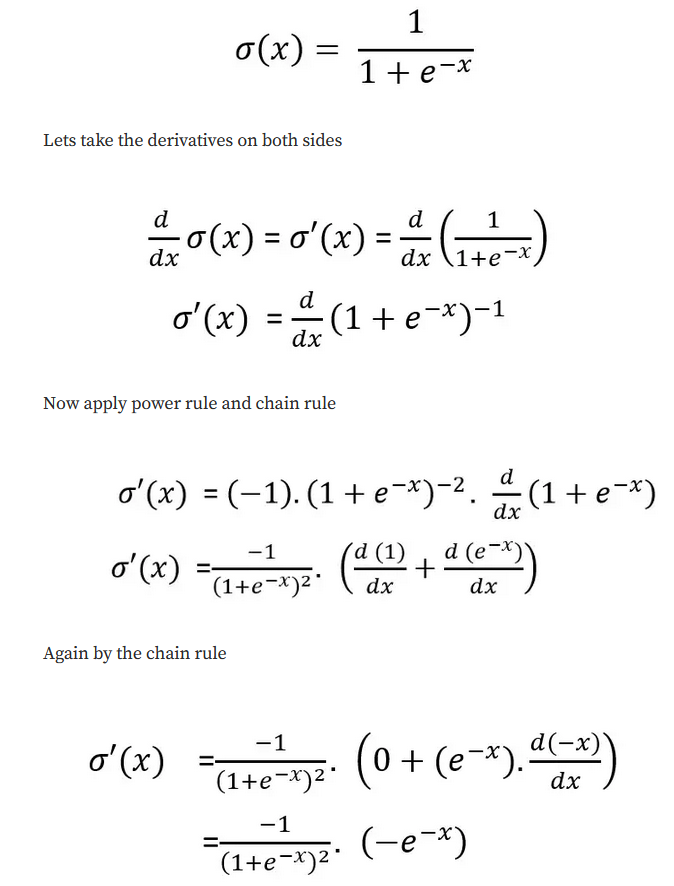

Derivation of the sigmoid derivative

Starting from $\sigma(x) = (1 + e^{-x})^{-1}$, applying the chain rule:

$$\sigma'(x) = (-1)(1 + e^{-x})^{-2} \cdot (-e^{-x}) = \frac{e^{-x}}{(1 + e^{-x})^{2}}$$

Note that $\frac{e^{-x}}{1 + e^{-x}} = 1 - \sigma(x)$ and $\frac{1}{1 + e^{-x}} = \sigma(x)$, therefore:

$$\sigma'(x) = \sigma(x) \cdot (1 - \sigma(x))$$

Drawback: The vanishing gradient problem — for very large or small inputs, the gradient approaches zero, slowing learning in deep networks.

ReLU (Rectified Linear Unit)

ReLU Function

$$f(x) = \max(0, x), \quad \text{range: } [0, +\infty)$$ Derivative: $f'(x) = \begin{cases} 0 & x < 0 \\ 1 & x > 0 \end{cases}$

Advantages: Computationally efficient; does not saturate for positive values (no vanishing gradient on positive side); leads to sparse activations.
Drawback: "Dying ReLU" problem — neurons can become permanently inactive if they always receive negative input.

SoftPlus

SoftPlus Function

$$f(x) = \log(1 + e^x), \quad \text{range: } (0, +\infty)$$ Derivative: $f'(x) = \sigma(x)$ (the sigmoid function)

A smooth, differentiable-everywhere approximation of ReLU. The most flexible shape for representing complex data distributions.

Comparison Table

Function	Formula	Range	Key Property / Drawback
Linear	$f(x) = x$	$(-\infty, +\infty)$	Stacking layers is useless; no non-linearity
Sigmoid	$\sigma(x) = \frac{1}{1+e^{-x}}$	$(0, 1)$	Smooth S-curve; vanishing gradient
ReLU	$\max(0, x)$	$[0, +\infty)$	Fast and sparse; dying ReLU
SoftPlus	$\log(1+e^x)$	$(0, +\infty)$	Smooth ReLU approximation; differentiable everywhere

5. Forward Propagation

Matrix Formulation

Instead of computing each neuron separately, an entire layer is computed at once using matrix multiplication:

Layer Transition (Matrix Form)

$$\mathbf{a}^{(l)} = \sigma\!\left(\mathbf{W}\,\mathbf{a}^{(l-1)} + \mathbf{b}\right)$$ where $\mathbf{W}$ is the $k \times n$ weight matrix, $\mathbf{a}^{(l-1)}$ is the input activation vector, and $\mathbf{b}$ is the bias vector.

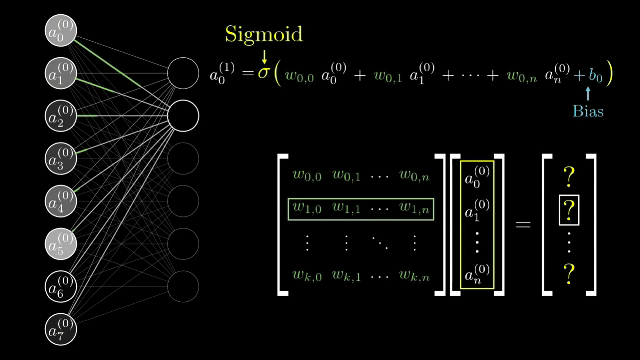

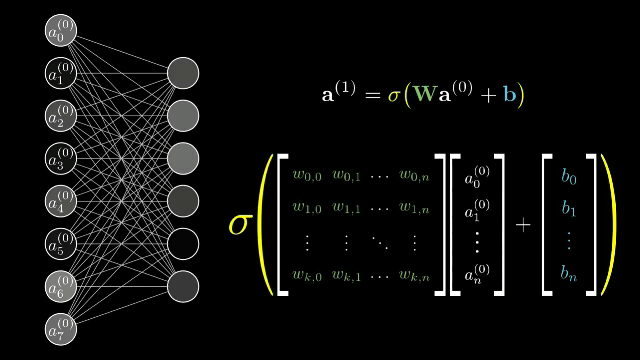

Matrix notation for layer activation computation

Matrix notation: weight matrix W times activation vector a(l-1) plus bias vector b, passed through activation function.

Compact form: $\mathbf{a}^{(l)} = \sigma(\mathbf{W}\mathbf{a}^{(l-1)} + \mathbf{b})$. The entire trained network is just a mathematical function mapping 784 pixel values to 10 output scores.

Inference (Test Time)

During inference, weights $w$ and biases $b$ are fixed. Only activations $a$ change with each input image. The process:

Set first-layer activations from pixel values
Propagate activations layer by layer: $\mathbf{a}^{(l)} = \sigma(\mathbf{W}\mathbf{a}^{(l-1)} + \mathbf{b})$
Read output scores from the final layer
Apply SoftMax to convert scores to probabilities

6. SoftMax and Output Interpretation

Raw output scores (logits) from the last layer can be any real number. SoftMax converts them to a proper probability distribution:

SoftMax Function

$$\text{SoftMax}(\vec{z})_i = \frac{e^{z_i}}{\displaystyle\sum_{j=1}^{K} e^{z_j}}$$ Properties: All outputs in $(0,1)$; outputs sum to exactly 1; amplifies differences between scores.

SoftMax: each raw score is exponentiated, then divided by the sum of all exponentiated scores.

For a digit "3" input with raw score 1.77 (highest), SoftMax assigns 33% probability to class 3 — the network's prediction. Compared to simply taking the argmax, SoftMax provides calibrated confidence scores and smooth gradients for training.

7. Loss Functions

A loss function measures how wrong the network's predictions are. The goal of training is to minimize the loss.

Sum of Squared Errors (SSE)

SSE Loss

$$\mathcal{L}_{\text{SSE}} = \sum_{i=1}^{n} (y_i - \hat{y}_i)^2$$ where $y_i$ is the true label (one-hot) and $\hat{y}_i$ is the predicted value.

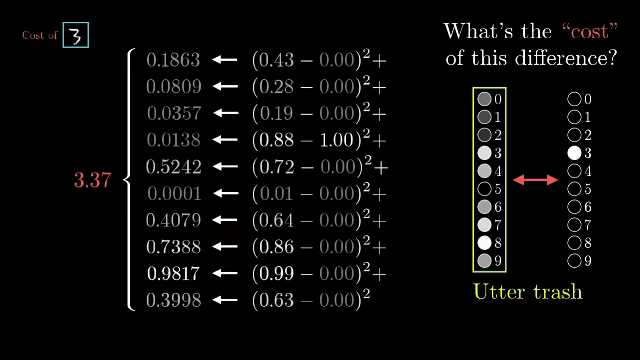

SSE for an incorrect prediction: random network outputs on digit "3" give loss ≈ 3.37.

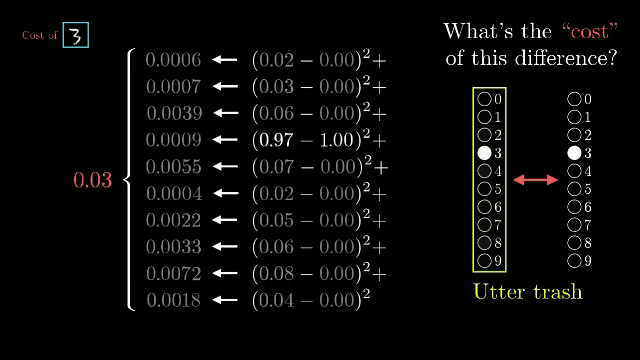

SSE for a correct prediction: outputs close to one-hot target give loss ≈ 0.03.

Cross-Entropy Loss

Cross-Entropy Loss (preferred for classification)

$$\mathcal{L}_{\text{CE}} = -\frac{1}{N}\sum_{i=1}^{N} Y_i \cdot \log(\hat{Y}_i)$$ Since $Y_i$ is one-hot, only the true class term contributes: $\mathcal{L}_{\text{CE}} = -\log(\hat{Y}_{\text{true class}})$

Example: digit "3" with SoftMax probability 0.33 for class 3:

\mathcal{L}_{\text{CE}} = -\log(0.33) \approx 0.481

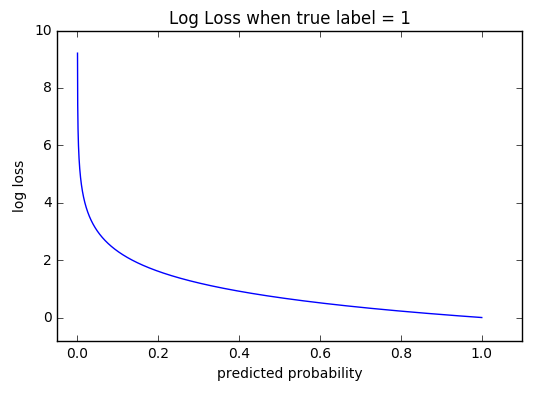

Cross-entropy log-loss: steep gradient when prediction is wrong (near 0), gentle gradient when correct (near 1). This creates strong corrective signals for bad predictions.

Why Cross-Entropy Over SSE?

Property	SSE	Cross-Entropy
Gradient when very wrong	Moderate (quadratic)	Very large (logarithmic)
Focus	All output neurons equally	Only true class
Convergence speed	Slower	Faster (stronger correction signal)
Use case	Regression tasks	Classification tasks (standard)

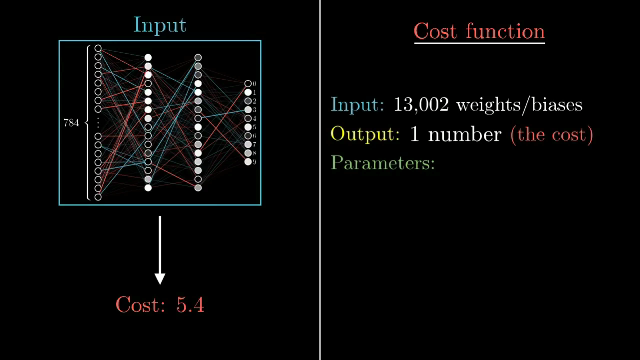

The cost function takes all 13,002 weights and biases as input and outputs a single loss number. Training minimizes this number.

8. Gradient Descent

We cannot analytically minimize the loss (we only have data samples, not a closed-form equation). Instead, we use gradient descent — iteratively stepping in the direction that decreases the loss.

One Parameter

Gradient Descent Update Rule

$$w_{\text{new}} = w_{\text{old}} - \eta \cdot \frac{\partial \mathcal{L}}{\partial w}$$ where $\eta$ is the learning rate (step size hyperparameter).

Positive gradient: $w$ is too large; decrease it (step left)
Negative gradient: $w$ is too small; increase it (step right)
Zero gradient: at a minimum (or saddle point)

Gradient descent on a 1D loss curve: the tangent slope at each point indicates the direction and magnitude of the step.

Worked Example: Pike Fish Model (1 parameter)

Problem: Predict pike fish length ($y$, meters) from weight ($a$, kg). Model: $\hat{y} = w \cdot a$.

Training data: Pike 1: (0.3 kg, 0.2 m), Pike 2: (0.6 kg, 0.4 m), Pike 3: (1.0 kg, 0.45 m). Learning rate $\eta = 0.18$, initial $w = 1$.

The derivative of SSE with respect to $w$: $\frac{d\,\text{SSE}}{dw} = -2a_1(y_1 - wa_1) - 2a_2(y_2 - wa_2) - 2a_3(y_3 - wa_3)$

Iteration	$w$	SSE	Gradient	Step	$w_{\text{new}}$
1	1.00	0.353	1.40	0.252	0.75
2	0.75	0.119	0.675	0.122	0.63
3	0.63	0.042	0.33	0.059	0.57
4	0.57	0.018	0.15	0.027	0.54
…	…	…	…	…	0.51

Converges to $w \approx 0.51$ with SSE $\approx 0.012$ and gradient $\approx 0$.

Two Parameters: The Gradient Vector

With model $\hat{y} = wa + b$, we compute partial derivatives forming the gradient vector:

$$\nabla \text{SSE} = \begin{bmatrix} \frac{\partial\,\text{SSE}}{\partial w} \\ \frac{\partial\,\text{SSE}}{\partial b} \end{bmatrix}, \quad \begin{bmatrix} w_{\text{new}} \\ b_{\text{new}} \end{bmatrix} = \begin{bmatrix} w_{\text{old}} \\ b_{\text{old}} \end{bmatrix} - \eta \cdot \nabla \text{SSE}$$

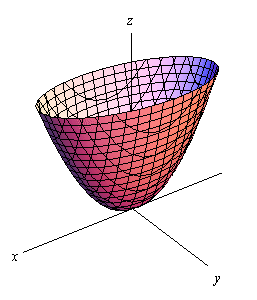

3D paraboloid loss surface for two-parameter gradient descent

3D loss surface for two parameters. Gradient descent traces a path down the bowl toward the minimum.

Many Parameters

In a real network with 13,002 parameters, the gradient vector has 13,002 components. Each component tells the sign and magnitude of the required update:

Negative gradient vector showing weight updates

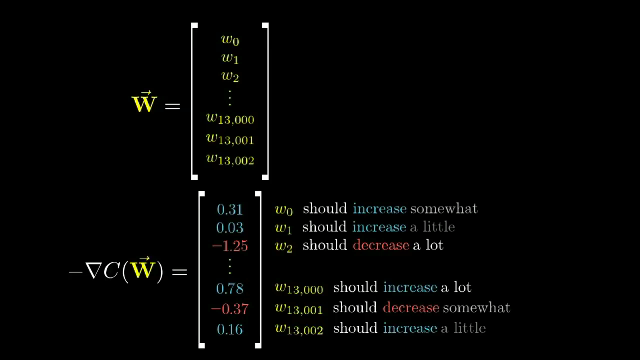

Negative gradient vector: each entry indicates direction (increase/decrease) and magnitude for one parameter.

$$\vec{\mathbf{W}}_{\text{new}} = \vec{\mathbf{W}}_{\text{old}} - \eta \cdot \nabla C(\vec{\mathbf{W}})$$

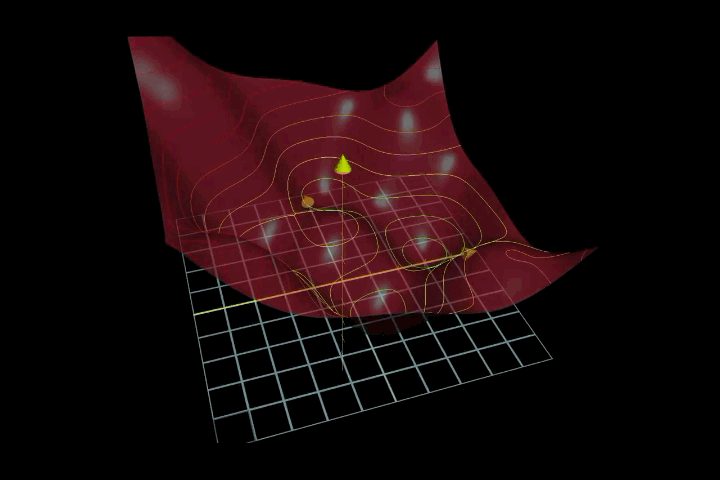

High-dimensional loss landscape with local minima and saddle points. Modern networks often have well-behaved loss landscapes where local minima are nearly as good as the global minimum.

9. Error Backpropagation

In a deep network, weights in early layers affect all subsequent layers. We cannot compute gradients independently for each weight. Backpropagation is the efficient algorithm that solves this using the chain rule of calculus.

Key insight

Backpropagation is used only during training, not during inference. It propagates the error signal backward from the output layer to the input layer, computing gradients for every weight efficiently by reusing intermediate computations.

The Chain Rule

For a composite function $f(g(h(x)))$:

$$\frac{df}{dx} = \frac{df}{dg} \cdot \frac{dg}{dh} \cdot \frac{dh}{dx}$$

In a neural network, the loss depends on the output, which depends on the pre-activation, which depends on the weights. Backpropagation applies this rule layer by layer, starting from the output.

Chain Rule Depths

Weight	Chain Rule Decomposition	Terms
$w_5$ (output layer)	$\frac{\partial \mathcal{L}}{\partial y} \cdot \frac{\partial y}{\partial y_{\text{in}}} \cdot \frac{\partial y_{\text{in}}}{\partial w_5}$	3
$w_1$ (hidden layer)	$\frac{\partial \mathcal{L}}{\partial y} \cdot \frac{\partial y}{\partial y_{\text{in}}} \cdot \frac{\partial y_{\text{in}}}{\partial h_1} \cdot \frac{\partial h_1}{\partial h_{1,\text{in}}} \cdot \frac{\partial h_{1,\text{in}}}{\partial w_1}$	5

Key insight

The first two terms ($\frac{\partial \mathcal{L}}{\partial y} \cdot \frac{\partial y}{\partial y_{\text{in}}}$) are shared across all output-layer weight updates. Backpropagation's efficiency comes from reusing these intermediate computations rather than recomputing them.

Training Progress

After 100 backpropagation steps on the example network (target $t=0$):

Step	$w_1$	$w_5$	$h_1$	$h_2$	$y$
0	0.15	0.90	0.79	0.99	0.73
1	0.07	0.84	0.70	0.98	0.69
5	−0.12	0.70	0.42	0.98	0.65
20	−0.71	0.58	0.02	0.99	0.32
100	−1.86	0.57	$2\times10^{-5}$	0.999	0.09

Converged network after 100 backpropagation steps

After 100 steps: output y has decreased from 0.73 to 0.09 (approaching target t=0). Hidden neuron h1 has been effectively silenced (activation near zero).

10. Training, Validation, and Testing Pipeline

Phase 1: Preparation

Split labeled data into three disjoint sets:

Training set: Used to update weights via backpropagation.
Validation set: Used to tune hyperparameters and detect overfitting. Never used to update weights.
Test set: Used exactly once at the very end to report final performance.

Dataset split into training and test sets

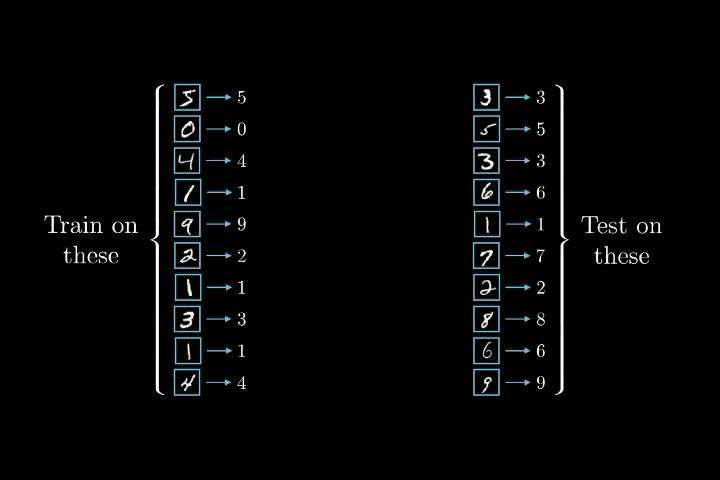

Standard dataset split: training set for weight updates, test set for final evaluation.

Phase 2: Training Loop

Forward pass: Feed a batch of images, compute predictions.
Compute loss: Compare predictions to ground-truth labels.
Backpropagation: Compute gradients for all parameters.
Update parameters: Apply gradient descent update rule.
Repeat with the next batch.
Validate every epoch; stop when validation loss converges.

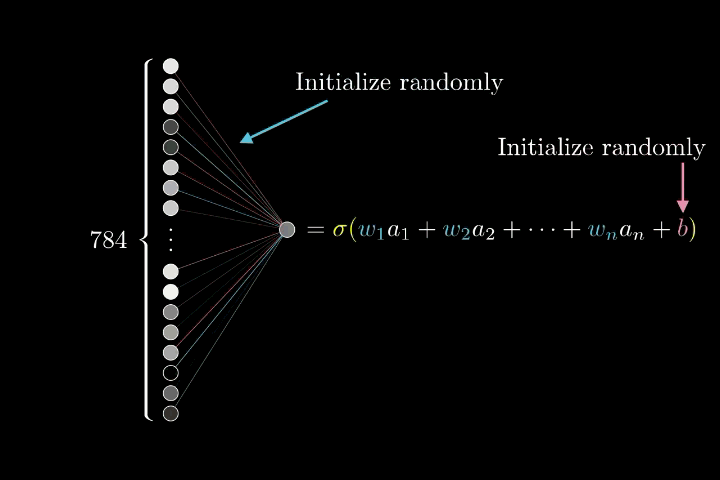

Weights are initialized randomly (e.g., Xavier initialization) before training begins.

Key Terminology

Iteration: Processing one mini-batch of images.
Epoch: One complete pass through the entire training dataset.
Batch: A subset of training images processed together.

Important Rules

Never train on validation or test data.
Never select a model based on test performance — use validation only.
The test set is used exactly once, at the very end.

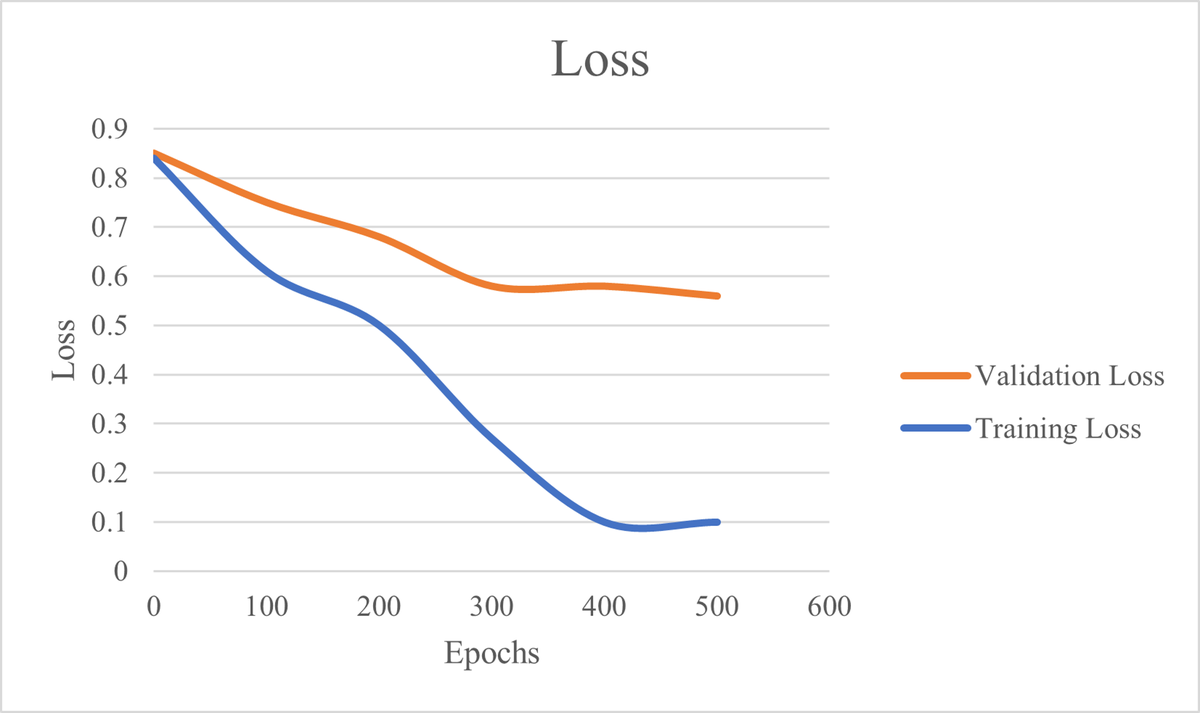

Typical training: training loss (blue) and validation loss (orange) should both decrease and remain close together.

11. Overfitting and Underfitting

Recognizing the Scenarios

Scenario	Training Loss	Validation Loss	Diagnosis
Good fit	Decreasing	Decreasing, stays close to train	Desired behavior
Overfitting	Keeps decreasing to near zero	Decreases then increases	Memorizing training data
Underfitting	High and not decreasing	High, not decreasing	Model too simple

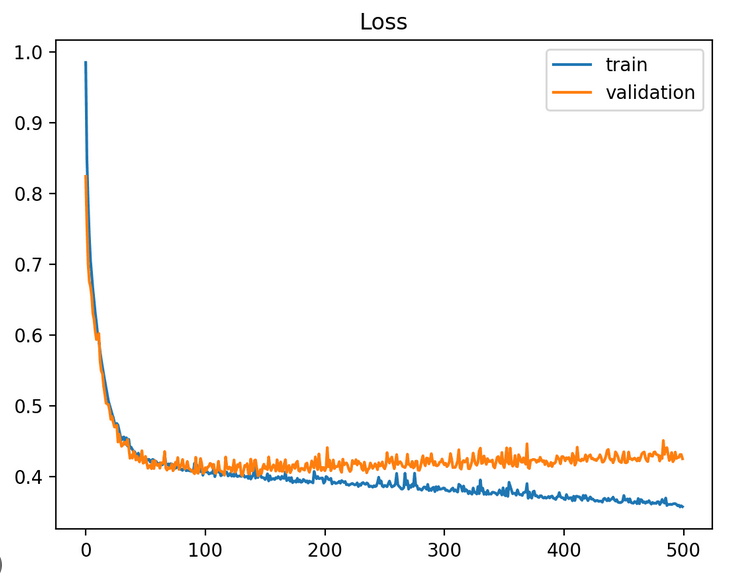

Good fit: training and validation loss decrease together with a small gap.

Overfitting: training loss keeps decreasing while validation loss diverges upward.

Bias-Variance Tradeoff

High bias (underfitting): Model too simple; both train and validation loss are high.
High variance (overfitting): Model too complex; train loss low, validation loss high.
Goal: Find the sweet spot — complex enough to capture patterns, simple enough to generalize.

Remedies for Overfitting

Early stopping: Halt training when validation loss starts increasing.
Regularization: L1/L2 weight penalties, dropout.
More training data: Reduces the chance of memorization.
Simpler model: Fewer layers or neurons.
Data augmentation: Artificially expand the training set.

12. Why Neural Networks Work: Hierarchical Feature Learning

Neural networks learn features in a hierarchical, composable manner:

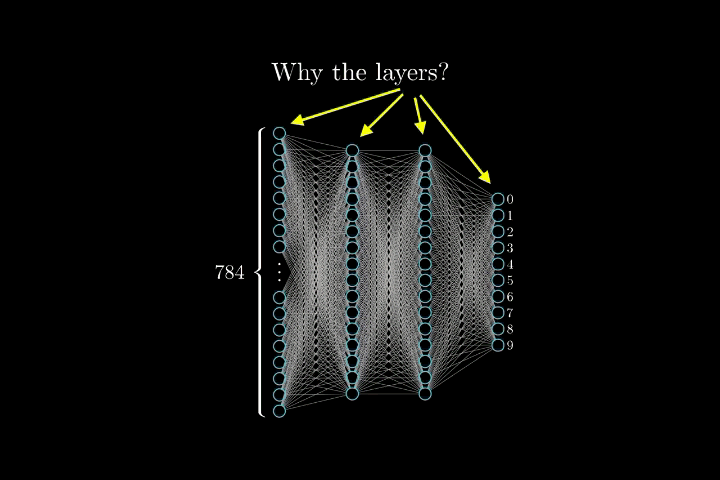

Hierarchical feature learning through layers

Layer-by-layer abstraction: each layer builds on features from the previous layer to detect increasingly complex patterns.

Layer	What It Learns	Example (Digit Recognition)
First hidden	Small, simple patterns	Edges, corners, strokes
Middle hidden	Combinations of simple patterns	Curves, loops, sub-shapes
Later hidden	Large, complex patterns	Full digit components (loop of "9", vertical stroke)
Output	Combines high-level features	Final classification decision

Key insight

This hierarchical feature learning principle is the fundamental reason CNNs (Module 5) are so powerful for images. The architecture enforces a natural progression from pixels to edges to shapes to objects.

Flashcards

← 3. Supervised 5. CNNs →
